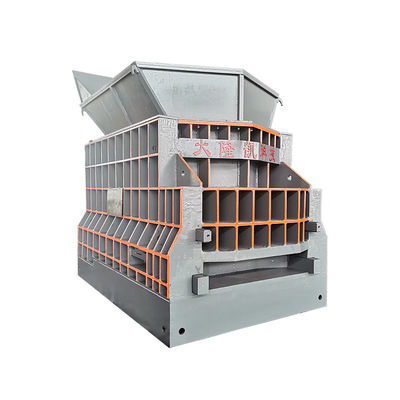

WS-630E VFD Energy Saving Scrap Metal Shear with 630 Tons Cutting Force and 1400mm Blade for 30% Power Reduction

  • WS-630E VFD Energy Saving Scrap Metal Shear with 630 Tons Cutting Force and 1400mm Blade for 30% Power Reduction
Lugar de origem Jiangsu, China
Marca DLK
Certificação CE, ISO 9001
Número do modelo WS-630E
Quantidade de ordem mínima 1 conjunto
Preço USD 88000-98000 per Set
Detalhes da embalagem Embalagem de filme plástico com estrutura de aço, transporte de contêineres
Tempo de entrega 25-35 dias úteis
Termos de pagamento L/C, T/T
Habilidade da fonte 10 conjuntos por mês
Detalhes do produto
Modelo WS-630E Tipo de unidade unidade de frequência variável
Força de corte máximo 630 toneladas Comprimento da lâmina 1400 milímetros
Altura da tesoura 300/420 de milímetro Potência nominal 90 kW
Consumo de potência de Avg 63-72 kW Economia de energia 20 a 30%
Sistema de controle PLC + VFD + Remoto Resfriamento Ar Forçado 52P
Pressão hidráulica ≤ 26 MPa
Destacar

VFD Energy Saving Shear

,

Smart Hydraulic Metal Cutter

,

Low Power Scrap Processor
Deixe um recado
Descrição de produto
WS-630E VFD Energy Saving Scrap Metal Shear 1400mm Blade 630 Ton 30% Power Reduction Smart Hydraulic Cutter
WS-630E Variable Frequency Drive Energy Saving Scrap Metal Shear

The WS-630E integrates smart Variable Frequency Drive (VFD) technology into the proven WS-630 platform, achieving 20-30% energy savings compared to fixed-speed hydraulic shears. The intelligent control system automatically adjusts motor speed and pump output based on actual load conditions, reducing both electricity consumption and operational costs.

Energy Saving Technology
  • VFD Smart Control: Automatically matches motor RPM to hydraulic demand, eliminating wasted energy during idle and low-load phases
  • 20-30% Power Reduction: Typical energy savings of 25% translates to significant annual electricity cost reduction
  • Soft Start Function: Eliminates high inrush current, reducing stress on electrical components and extending motor life
  • Load Sensing Hydraulics: Pump output adjusts in real-time based on cutting resistance for optimal efficiency
  • Energy Monitoring Display: Real-time power consumption data shown on the PLC touch screen
  • Eco Mode Operation: Automatic standby power reduction when machine is idle between cycles
Applications

Ideal for environmentally conscious recycling facilities, operations in regions with high electricity costs, and companies targeting green certification standards. Suitable for processing all standard scrap metal types including steel profiles, pipes, plates, and structural parts.

Technical Specifications
Parameter Specification
Model WS-630E
Drive Type Variable Frequency Drive (VFD)
Max Cutting Force 630 Tons
Blade Length 1400 mm
Shear Height 300/420 mm
Cutting Speed 3-4 times/min (load-adaptive)
Processing Capacity 8-12 tons/hour
Rated Motor Power 90 KW (VFD Controlled)
Average Power Consumption 63-72 KW (30% energy saving)
Pump Type A4V250 x 2 (Load-Sensing)
Hydraulic System Pressure ≤ 26 MPa
Control System PLC Touch Screen + VFD Module + Remote Control
Energy Monitoring Real-time kW and kWh Display
Cooling System Forced Air Cooler 52P
Power Supply 380V/3P 50Hz
Machine Weight 36 Tons
Our Service
  • 24/7 technical support with energy optimization consultation
  • One year warranty including VFD system components
  • Energy savings performance guarantee with commissioning
  • Remote monitoring and diagnostic capability
  • OEM & ODM customization available
Request an energy savings analysis for your specific application today.
