WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height

  • WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height
  • WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height
  • WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height
  • WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height
  • WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height
  • WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height
Certificação ISO
Quantidade de ordem mínima 1
Preço 53000

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Modelo não. WS-630 Força de corte máximo 6300kN
Comprimento da lâmina 1600MM Taxa de produção 8-15 t/h
Poder 110kW Altura de corte 420mm
Cisalhamento Hidro-Cilindro YG400/280 Empurre o Hidro-Cilindro YG280/200
Pressão do sistema hidráulico <22Mpa Comprimento de corte 1400mm
Tempos de corte 2-4 vezes/min Modo de operação Materiais de carregamento mecânico, botão de pressão e controle PLC
Especificação de potência 415V/3P 50Hz Tamanho do tanque de óleo 3000X2000X800 (4500L)
Modo de resfriamento Resfriamento de ar forçado
Destacar

8-15 T/H Production Rate Gantry Shear

,

110kw Power Scrap Shear

,

420mm Cutting Height Hydraulic Metal Cutting Machine
Deixe um recado
Descrição de produto
WS-630 Horizontal Metal Container Shear
Applications
The WS-630 scrap shear is designed for economical scrap processing. This machine features easy operation and flexible transportation with a roll on/roll off system. Various models are available to suit different requirements. The HPM series of horizontal balers work with manual belting.
Key Features
  • Horizontal structure allows for both manual feeding and automatic feeding with conveyor
  • PLC control and push-button operation ensure safe and reliable performance
  • High output capacity for efficient scrap processing
WS-630 Container Shear Technical Parameters
No. Parameter Name and Content Remark
1
Shearing Hydro-Cylinder
Model: YG400/280
Quantity: 2
Nominal Thrust: 3150KNX2
2
Push Hydro-Cylinder
Model: YG280/200
Quantity: 1
Nominal Thrust: 1350KN
3 Hydraulic System Working Pressure: <22Mpa
4 Cutting Length/Height: 1400/420mm
5 Shearing Times: 2-4 Times/Min Empty load Load operation
6 Operating Mode: Mechanical Loading Materials, Push-Button & PLC Control (With The Remote Control)
7 Power Specification: 415V/3P 50Hz
8 Main Machine Power: 110Kw (not including system of cooling, heating and filtering)
9 Oil Tank Size: 3000X2000X800 (4500L)
10 Cooling Mode: Forced air cooling 52P 52P
10
Motor
Model: Y2-250M-4
Quantity: 2
Rated Speed: 1470 Rpm
Rated Power: 55 Kw
11
Pump
Model: A4V250
Quantity: 2
Nominal Displacement: 250ml/r
Rated Pressure: 31.5Mpa
Other Available Models
Model Max Cutting Force(KN) Blade Length(mm) Shear Height(mm) Production Rate(t/h) Power(KW)
WS-630 6300 1400/1600 300/420 8-15 110
WS-800 8000 1600 420/500 12-18 220
WS-1000 10000 1600/2100 420/500 15-25 360
WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height 0
About Jiangsu Dalongkai Technology Co., Ltd.

We specialize in manufacturing scrap metal recycling processing and hydraulic equipment. With strong technology, advanced manufacturing lines and complete testing devices, we produce various hydraulic equipment including:

  • Hydraulic scrap balers
  • Scrap shears (including container shears)
  • Hydraulic metal balers
  • Garbage compactors
  • Briquetting presses
  • Sheet metal shears
  • Other non-standard equipment

Our products are exported worldwide to clients in Russia, India, South Africa, Southeast Asia, and other regions. Our machines are ideal for scrapyards, steel mills, scrap recycling processing industry, and nonferrous & ferrous smelting industry.

Product Images

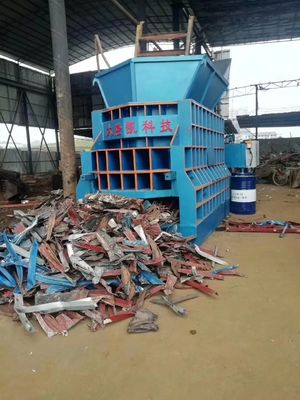

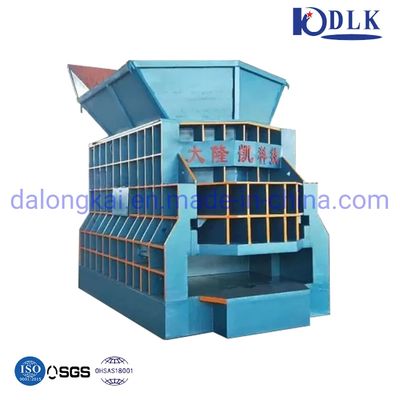

WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height 1
WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height 2
Finished Products

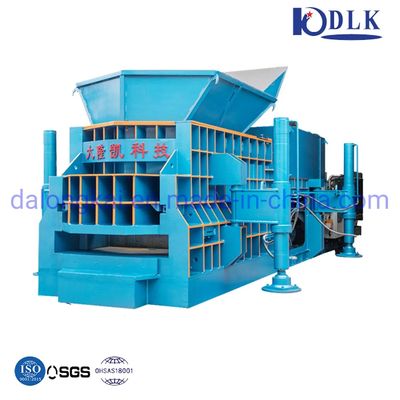

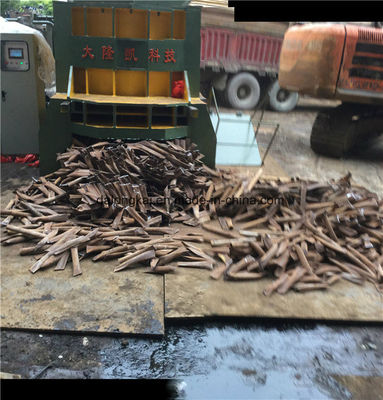

WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height 3
WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height 4

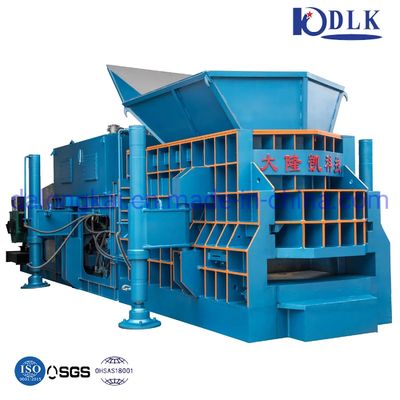

WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height 5
Package
WS-630 Hydraulic Gantry Shear with 8-15 T/H Production Rate 110kw Power and 420mm Cutting Height 6
