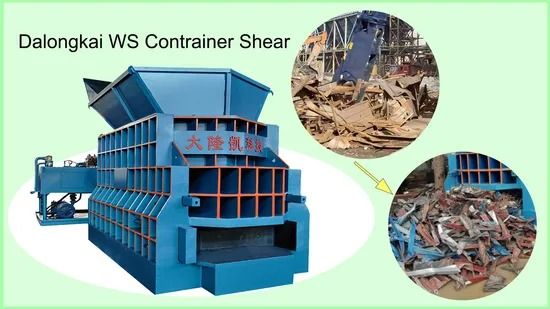

WS-630 Customizable Gantry Shear with 6300kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Processing

  • WS-630 Customizable Gantry Shear with 6300kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Processing
  • WS-630 Customizable Gantry Shear with 6300kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Processing
  • WS-630 Customizable Gantry Shear with 6300kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Processing
  • WS-630 Customizable Gantry Shear with 6300kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Processing
Certificação ISO
Quantidade de ordem mínima 1
Preço 82000

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Modelo não. WS-630 Força de corte máximo 6300kN
Comprimento da lâmina 1400mm Taxa de produção 8-12T/H
Poder 135 kW Força nominal de 400 toneladas
Tipo acionado Hidráulico Comprimento máximo de cisalhamento 1600MM
Tensão 21.5mpa Nota automática Automático
Altura da tesoura 300/420 Capacidade de produção 5 conjuntos/mês
Tipo de controle CLP Tipo de operação Apertar o botão
Tipo de estrutura Horizontal
Destacar

Customizable Gantry Shear

,

6300kn Max Cutting Force Gantry Shear

,

1400mm Blade Length Gantry Shear
Deixe um recado
Descrição de produto

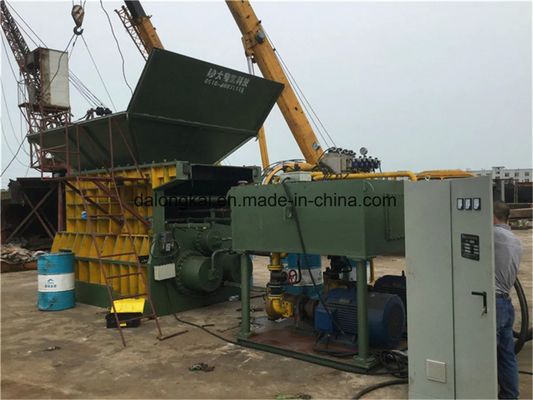

WS-630 Horizontal Automatic Metal Cutting Machine
The WS Horizontal Metal Shear is designed for efficient scrap metal processing, featuring easy operation and flexible transportation with a roll on/roll off system. Various models are available to suit different production requirements.
Key Applications
  • Economical scrap metal processing and recycling
  • Ideal for metal fabrication and waste management operations
Product Features
  • Horizontal structure: Supports both manual feeding and automatic feeding with conveyor
  • PLC control system: Push-button operation ensures safe and reliable performance
  • High production output: Designed for maximum efficiency in metal cutting operations
Product Specifications
Product Name WS Horizontal Metal Shear
Condition New
Application Scrap metal processing
Nominal Force 400Ton
Driven Type Hydraulic
Max. Length To Shear 1600mm
Voltage 21.5Mpa, Customized
Color Customized
Automatic Grade Automatic
Commercial Terms
Minimum Order Quantity 1 Set
Price Negotiable
Payment Terms 30% T/T In Advance
Supply Ability 5 sets/month
Delivery Time As per customer requirements
Packaging Details Seaworthy packing
After-sales Service Engineers available for overseas service
Technical Specifications
Model Max Cutting Force (KN) Blade Length (mm) Shear Height (mm) Production Rate (t/h) Power (KW)
WS-400 4000 1000 300/420 4-7 74
WS-500 5000 1400/1600 300/420 6-9 90
WS-630 6300 1400/1600 300/420 8-15 135
WS-800 8000 1600 420/500 12-18 180
WS-1000 10000 1600/2100 420/500 15-25 225
