Q15A-1600 Gantry Plate Shear Machine with 160 Ton Max Shear Force, 600mm Blade Length, and 20*500mm Max Cutting

  • Q15A-1600 Gantry Plate Shear Machine with 160 Ton Max Shear Force, 600mm Blade Length, and 20*500mm Max Cutting
  • Q15A-1600 Gantry Plate Shear Machine with 160 Ton Max Shear Force, 600mm Blade Length, and 20*500mm Max Cutting
  • Q15A-1600 Gantry Plate Shear Machine with 160 Ton Max Shear Force, 600mm Blade Length, and 20*500mm Max Cutting
  • Q15A-1600 Gantry Plate Shear Machine with 160 Ton Max Shear Force, 600mm Blade Length, and 20*500mm Max Cutting
  • Q15A-1600 Gantry Plate Shear Machine with 160 Ton Max Shear Force, 600mm Blade Length, and 20*500mm Max Cutting
  • Q15A-1600 Gantry Plate Shear Machine with 160 Ton Max Shear Force, 600mm Blade Length, and 20*500mm Max Cutting
Certificação ISO
Quantidade de ordem mínima 1
Preço 1

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Força máxima de cisalhamento 160 toneladas Comprimento da lâmina 600 mm
Corte máximo 20x500mm Frequência de cisalhamento 4-7 vezes/minuto
Potência do motor 18.5 KW Força Nominal 120-315 Toneladas
Tipo acionado Hidráulico Tensão 21,5 MPa
Nota Automática Semiautomático Capacidade de produção 10 séries/mês
Força de cisalhamento 160 toneladas Material máximo 20x500mm
Poder 18.5 KW Pressão hidráulica 21,5 MPa
Freqüência 4-7 vezes/minuto
Destacar

160 Ton Max Shear Force Gantry Shear

,

600mm Blade Length Plate Shear Machine

,

20*500mm Max Cutting Gantry Plate Shear
Deixe um recado
Descrição de produto
Q15A-1600 Gantry Plate Shear Machine
Product Overview
This hydraulic gantry plate shear machine is designed for processing various metal plates, cutting them into materials of different specifications. It effectively replaces flame cutting processes, significantly reducing operational costs while improving efficiency.
Technical Specifications
Model Number Q15-1200~Q15-3150
Certification SGS
Place of Origin Jiangsu P.R. China
Product Name Gantry Plate Shear
Condition New
Application Scrap Metal Processing
Nominal Force 120Tons ~ 315Tons
Driven Type Hydraulic
Power 15KW ~ 44kW
Voltage 21.5Mpa, Customized
Color Customized
Automatic Grade Semi-Automatic
Detailed Model Specifications
Model Shearing Force (ton) Blade Length (mm) Max Cutting Material (mm) Shearing Frequency (times/min) Motor (KW)
Q15A-1200 120 600 18*500 4-7 15
Q15A-1600 160 600 20*500 4-7 18.5
Q15A-2000I 200 600/800 25*500 4-7 22
Q15A-2500I 250 600 30*500 4-7 22
Q15A-2500II 250 800 30*700 4-7 2*15
Q15A-3150 315 800 30*700 4-7 45
Q15A-4000 400 800 35*700 4-7 2*22
Q15A-5000 500 900 40*800 4-7 2*45
Q15B-1600 160 1200 16/12*1000 4-7 18.5
Q15B-2000 200 1200 18/16*1000 4-7 22
Q15B-2500I 250 1200/1600 25/20*1000 4-7 2*18.5
Q15B-3150 315 1200 30/25*1000 4-7 2*18.5

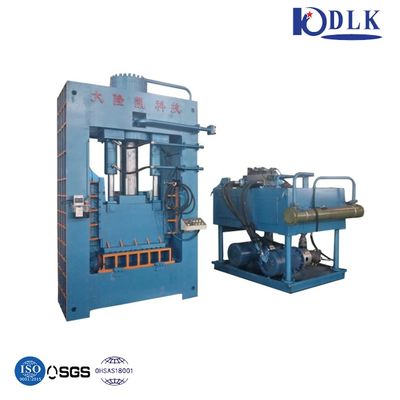

Product Images
Q15A-1600 Gantry Plate Shear Machine with 160 Ton Max Shear Force, 600mm Blade Length, and 20*500mm Max Cutting 0 Q15A-1600 Gantry Plate Shear Machine with 160 Ton Max Shear Force, 600mm Blade Length, and 20*500mm Max Cutting 1 Q15A-1600 Gantry Plate Shear Machine with 160 Ton Max Shear Force, 600mm Blade Length, and 20*500mm Max Cutting 2 Q15A-1600 Gantry Plate Shear Machine with 160 Ton Max Shear Force, 600mm Blade Length, and 20*500mm Max Cutting 3

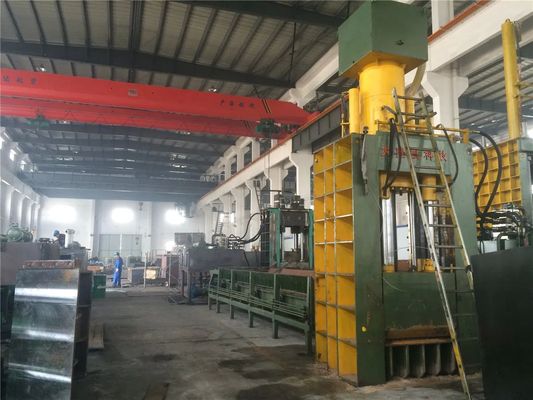

Manufacturing Facility
Q15A-1600 Gantry Plate Shear Machine with 160 Ton Max Shear Force, 600mm Blade Length, and 20*500mm Max Cutting 4 Q15A-1600 Gantry Plate Shear Machine with 160 Ton Max Shear Force, 600mm Blade Length, and 20*500mm Max Cutting 5 Q15A-1600 Gantry Plate Shear Machine with 160 Ton Max Shear Force, 600mm Blade Length, and 20*500mm Max Cutting 6
Commercial Terms
Minimum Order Quantity 1 Set
Price Negotiable
Payment Terms 30% T/T In Advance
Supply Ability 10 sets/month
Delivery Time As per requirement
Packaging Details Seaworthy packing
After-sales Service Engineers available for overseas service
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. We will send you spare parts for free if problems are caused by manufacturing defects. For user-caused issues, we provide spare parts at cost. Direct phone support is always available.
Q2: Can I visit your factory before ordering?
Yes, we welcome factory visits. Our facility is located at 29# Panlongshan Road, Jiangyin City, Jiangsu Province, 214429, P.R. China. We are conveniently located near Shanghai Pudong Airport and provide airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years. Export business accounts for 50-60% of our production.
Q4: How can I trust your company?
With 20 years of professional design experience, we provide suitable suggestions and competitive pricing. We hold national patents, CE certification, and ISO standards for all equipment. Factory inspections are welcome, and we specialize in hydraulic balers and shears.
Q5: Is your price competitive?
We supply only high-quality machines and provide the best factory pricing based on superior products and comprehensive service support.
