Q15A-4000 Hydraulic Steel Plate Shear Machine with 400 Ton Max Shear Force 800mm Blade Length and 35*700mm Max Cutting Specifications
Contacte-me para amostras grátis e vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.
xDetalhes do produto
| Força máxima de cisalhamento | De 400 toneladas | Comprimento da lâmina | 800 milímetros |
|---|---|---|---|
| Corte máximo | 35*700mm | Frequência de cisalhamento | 4-7 vezes/minuto |
| Potência do motor | 2*22 kW | Força Nominal | 120 toneladas ~ 315 toneladas |
| Tipo acionado | Hidráulico | Tensão | 21,5 MPa |
| Nota Automática | Semiautomático | Capacidade de produção | 5 séries/mês |
| Força de cisalhamento | 120-500 toneladas | Material máximo | 40*800mm |
| Faixa de potência | 15 kW ~ 44 kW | Opções de lâmina | 600-1600 milímetros |
| Configuração do motor | Dispositivos simples/dual | ||
| Destacar | 400 Ton Max Shear Force Gantry Shear,800mm Blade Length Hydraulic Steel Plate Shear Machine,35*700mm Max Cutting Specifications Scrap Metal Shear |
||
Descrição de produto

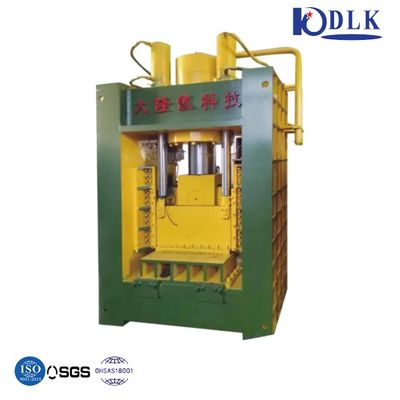

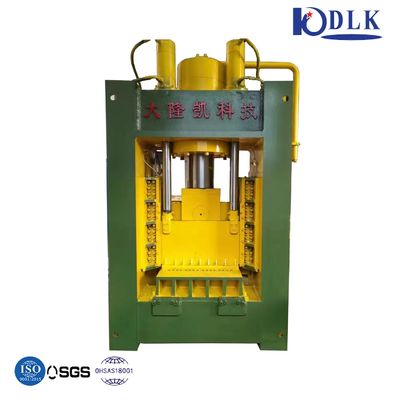

Q15A-4000 Hydraulic Steel Plate Shear Machine
This hydraulic steel plate shear machine is designed for processing various metal plates, cutting them into materials of different specifications. It effectively replaces flame cutting methods, significantly reducing operational costs while improving efficiency.
Technical Specifications
General Information
| Model Number | Q15-1200~Q15-3150 |
|---|---|
| Certification | SGS |
| Place of Origin | Jiangsu P.R. China |
Product Attributes
| Product Name | Gantry Plate Shear |
|---|---|
| Condition | New |
| Application | Scrap Metal Processing |
| Nominal Force | 120Tons ~315Tons |
| Driven Type | Hydraulic |
| Power | 15KW~44kW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Commercial Terms
| Minimum Order Quantity | 1 Set |
|---|---|
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Detailed Specifications
| Model | Shearing Force (ton) | Blade Length (mm) | Max. Cutting Material (mm) | Shearing Frequency (times/min) | Motor (KW) |
|---|---|---|---|---|---|
| Q15A-1200 | 120 | 600 | 18×500 | 4-7 | 15 |
| Q15A-1600 | 160 | 600 | 20×500 | 4-7 | 18.5 |
| Q15A-2000I | 200 | 600/800 | 25×500 | 4-7 | 22 |
| Q15A-2500I | 250 | 600 | 30×500 | 4-7 | 22 |
| Q15A-2500II | 250 | 800 | 30×700 | 4-7 | 2×15 |
| Q15A-3150 | 315 | 800 | 30×700 | 4-7 | 45 |
| Q15A-4000 | 400 | 800 | 35×700 | 4-7 | 2×22 |
| Q15A-5000 | 500 | 900 | 40×800 | 4-7 | 2×45 |
| Q15B-1600 | 160 | 1200 | 16/12×1000 | 4-7 | 18.5 |
| Q15B-2000 | 200 | 1200 | 18/16×1000 | 4-7 | 22 |
| Q15B-2500I | 250 | 1200/1600 | 25/20×1000 | 4-7 | 2×18.5 |
| Q15B-3150 | 315 | 1200 | 30/25×1000 | 4-7 | 2×18.5 |
Product Images
Factory & Certification
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. We will send you spare parts for free if problems are caused by manufacturing defects. For user-caused issues, we provide spare parts at cost. Direct phone support is available for any technical assistance.
Q2: Can I visit your factory before ordering?
Yes, we welcome factory visits. Our facility is located at 29# Panlongshan Road, Jiangyin City, Jiangsu Province, 214429, P.R China. We are conveniently located near Shanghai Pudong Airport and provide airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years. Export business constitutes 50-60% of our operations.
Q4: How can I trust your company?
With 20 years of professional design experience, we provide suitable technical suggestions and competitive pricing. Our credentials include third-party assessments, national patents, and CE and ISO certifications for all equipment. Factory inspections are welcome, and we specialize in hydraulic balers and hydraulic shears.
Q5: Is your price competitive?
We supply only high-quality machines and provide the best factory pricing based on superior products and comprehensive service support.
