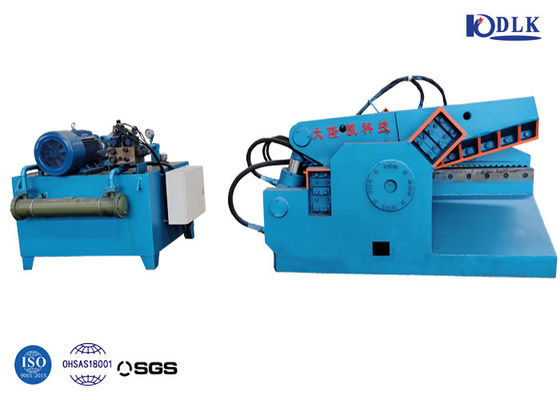

WS-630S Servo-Driven Hydraulic Scrap Metal Shear with 630 Tons Cutting Force and IoT Smart Control

  • WS-630S Servo-Driven Hydraulic Scrap Metal Shear with 630 Tons Cutting Force and IoT Smart Control
Lugar de origem Jiangsu, China
Marca DLK
Certificação CE, ISO 9001
Número do modelo WS-630S
Quantidade de ordem mínima 1 conjunto
Preço USD 92000-105000 per Set
Detalhes da embalagem Embalagem de filme plástico com estrutura de aço, transporte de contêineres
Tempo de entrega 30-40 dias úteis
Termos de pagamento L/C, T/T
Habilidade da fonte 10 conjuntos por mês
Detalhes do produto
Modelo WS-630S Tecnologia da movimentação Hidráulica Servo-Acionada
Força de corte máximo 630 toneladas (200-630T ajustável) Comprimento da lâmina 1400 milímetros
Altura da tesoura 300/420 de milímetro Faixa de curso 100-850 mm programável
Nível de ruído ≤ 75dB(A) Servo motor Servo CA de 110 kW
Conectividade Ethernet/Wi-Fi/4G, IoT Controlar PLC Touch + Remoto + IoT
Destacar

Servo Precision Metal Shear

,

Programmable Stroke Scrap Cutter

,

IoT Smart Recycling Machine
Deixe um recado
Descrição de produto
WS-630S Servo Driven Precision Scrap Metal Shear
The WS-630S pioneers the use of servo-driven hydraulic technology in scrap metal shearing, delivering unmatched precision, energy efficiency, and operational control. The servo pump system provides exact flow control, enabling adjustable cutting force and stroke position for processing diverse material types and thicknesses with optimal results.
Servo Precision Advantages
  • Servo Pump System: High-response servo motor directly drives hydraulic pump for instantaneous flow and pressure control
  • Programmable Stroke Control: Adjust cutting stroke length from 100mm to 850mm based on material size, reducing unnecessary cycle time
  • Precision Pressure Control: Automatically adjusts cutting force from 200 to 630 tons based on material resistance
  • Material Recognition Mode: Pre-set profiles for different scrap types (light aluminum, heavy steel, mixed materials) with one-touch selection
  • Ultra-Quiet Operation: Servo motor operates at < 75 dB, significantly quieter than conventional hydraulic power units
  • IoT Ready: Built-in connectivity for remote monitoring, predictive maintenance alerts, and production data analytics
Applications
Ideal for advanced recycling facilities requiring precise cutting control, operations processing mixed material streams, noise-restricted urban recycling centers, and companies implementing Industry 4.0 smart factory standards.
Technical Specifications
Parameter Specification
Model WS-630S
Drive Technology Servo-Driven Hydraulic
Max Cutting Force 630 Tons (Programmable 200-630T)
Blade Length 1400 mm
Shear Height 300/420 mm
Cutting Speed 3-5 times/min (material-dependent)
Processing Capacity 8-15 tons/hour
Servo Motor Power 110 KW (High-Response AC Servo)
Stroke Range 100-850 mm (Programmable)
Force Range 200-630 Tons (Auto-Adjusting)
Noise Level ≤ 75 dB(A) at 1 meter
Pump Type Servo-Driven Piston Pump x 2
Hydraulic Pressure ≤ 31.5 MPa (Variable)
Control System PLC Touch Screen + IoT Module + Remote
Connectivity Ethernet, Wi-Fi, 4G (Optional)
Cooling System Servo-Controlled Variable Speed Cooler
Power Supply 380V/3P 50Hz
Machine Weight 37 Tons
Our Service
  • 24/7 technical support with IoT-enabled remote diagnostics
  • One year warranty with servo system extended coverage option
  • Free operator training on programmable control system
  • Predictive maintenance subscription with real-time alerts
  • Custom software updates for material profile optimization
Schedule a live demonstration of servo precision cutting technology today.
