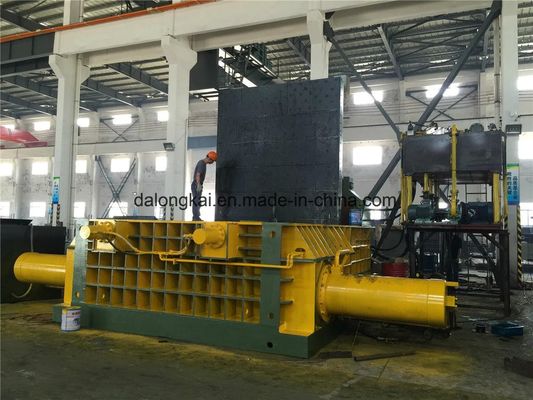

Y81K-315 Hydraulic Scrap Baler Machine with 315 Ton Force 3500x3000x1300mm Press Box and Customizable Bale Size for High Productivity

Quantidade de ordem mínima 1
Preço 69000

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Modelo No. Y81K-315 Cyl.Force principal 315 toneladas
Tamanho da caixa de pressione 3500*3000*1300 (mm) Tamanho do fardo 600*600 (mm)
Peso do fardo 600 ~ 1000 (kg) Energia motora 90 (quilowatt)
Força nominal 125TONS ~ 1200TONS Tipo acionado Hidráulico
Alcance de potência 15kW ~ 270kW Tensão 21.5mpa
Grau automático Semi-automático Capacidade de produção 5 conjuntos/mês
Força de extrusão 63 toneladas a 400 toneladas Produtividade 4tons/turno para 40tons/turno
Tipos de descarga Virando, empurrando, encaminhando, levantamento manual
Destacar

315 Ton Hydraulic Scrap Baler

,

3500x3000x1300mm Metal Baler Machine

,

Customizable Bale Size Scrap Copper Baler

Deixe um recado
Descrição de produto
Y81K-315 Hydraulic Scrap Copper Baler Machine

The Y81 series hydraulic metal baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales. These bales can be formed into square columns, cylinders, octagons, and other shapes to optimize transportation, reduce costs, and improve logistics efficiency.

Ideal for steel plants, recycling facilities, and metal processing industries, this baler offers hydraulic drive systems with optional manual or PLC automatic controls. Multiple discharge methods are available including turning over, pushing out, forwarding out, and manual lifting.

Key advantages include no need for fixed foot screws and the option to operate with a diesel engine when electrical power is unavailable. With extrusion forces ranging from 63 to 400 tons across 10 models, productivity varies from 4 to 40 tons per shift. Both compression chamber dimensions and bale specifications can be customized to meet specific requirements.

Product Specifications
Attribute Details
Product Name Y81 series hydraulic metal baler
Condition New
Application Scrap metal processing
Nominal Force 125Tons ~1200Tons
Driven Type Hydraulic
Power 15KW~270KW
Voltage 21.5Mpa, Customized
Color Customized
Automatic Grade Semi-Automatic
Commercial Terms
Term Details
Minimum Order Quantity 1 Set
Price Negotiable
Payment Terms 30% T/T In Advance
Supply Ability 10 sets/month
Delivery Time As per requirement
Packaging Details Seaworthy packing
After-sales Service Overseas engineer support available
Technical Specifications
Model Main Cyl.Force (ton) Press Box Size (mm) Bale Size (mm) Bale Weight (kg) Motor (KW)
Y81F-125 125 1200*700*600 300*300 50-70 15
Y81F-160 160 1600*1000*800 400*400 100-150 22
Y81F-200 200 1600*1200*800 400*400 120-220 37
Y81F-250 250 2000*1750*1200 500*500 300-500 60
Y81F-315 315 3000*2500*1200 600*600 400-700 90
Y81F-315 315 3500*3000*1300 700*700 600-1000 90
Y81K-315 315 4000*3000*1300 700*700 800-1200 135
Y81F-400 400 3500*3000*1300 700*700 800-1300 135
Y81K-400 400 4000*3000*1300 700*700 900-1300 135
Y81F-500 500 4000*3000*1300 700*700 900-1500 135
Y81K-500 500 4000*3500*1300 700*700 900-1600 135
Y81F-600 600 4000*3000*1400 700*700 1000-1700 180
Y81K-600 600 4000*3000*1300 700*700 1100-1700 180
Y81F-800 800 4000*3500*1400 700*700 1200-1800 180
Y81K-800 800 4000*3500*1400 700*700 1200-1800 180
Y81F-1000 1000 5000*3500*1500 700*700 1300-1900 225
Y81K-1200 1200 5000*3500*1500 700*700 1400-2000 270
