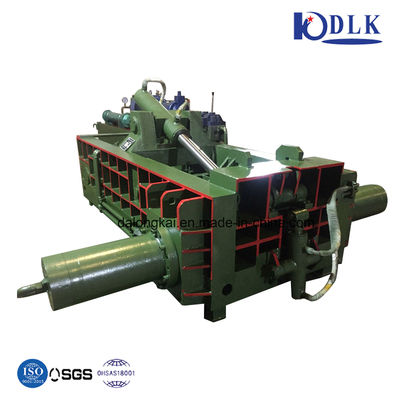

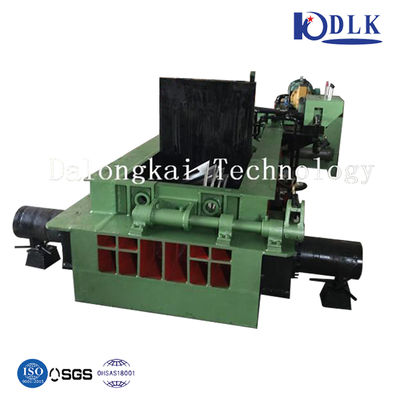

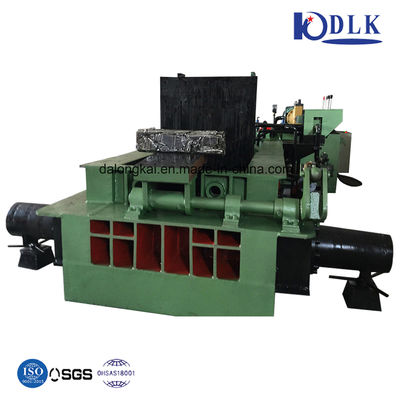

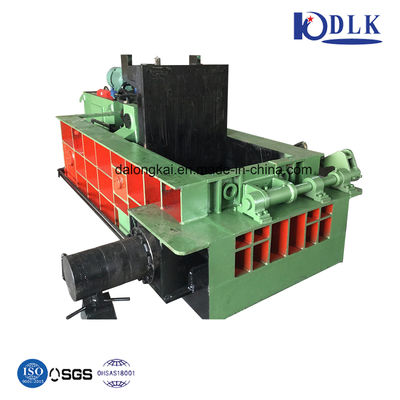

Y81F-160 Hydraulic Baling Press Machine 37KW for Scrap Metal Recycling with 400*400mm Bale Size
Contacte-me para amostras grátis e vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.
xDetalhes do produto
| Modelo No. | Y81F-160 | Cyl.Force principal | 160 toneladas |
|---|---|---|---|
| Tamanho da caixa de pressione | 1600*1200*800 (mm) | Tamanho do fardo | 400*400 (mm) |
| Peso do fardo | 100 ~ 150 (kg) | Energia motora | 37 (KW) |
| Força nominal | 125TONS ~ 1200TONS | Tipo acionado | Hidráulico |
| Tensão | 21.5mpa | Grau automático | Semi-automático |
| Capacidade de produção | 5 conjuntos/mês | Tamanho da câmara de compressão | personalizável |
| Forma de bala | Coluna quadrada, cilindro, octógono | Tipos de descarga | Virando, empurrando, encaminhando, levantamento manual |
| Fonte de energia | Motor a diesel (opcional) | ||
| Destacar | Y81F-160 Hydraulic Baling Press Machine,37KW Scrap Baler Machine,400*400mm Metal Baler |
||
Descrição de produto
Y81f-160 Hydraulic Baling Press Machine for Scrap Metal
Product Overview
The Y81 series metal hydraulic baler efficiently processes various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales (square, cylindrical, or octagonal shapes). This reduces transportation costs and increases handling efficiency.
Key Features
- Ideal for steel plants, recycling centers, and metal processing industries
- Hydraulic drive system with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No need for fixed foot screws - portable operation
- Diesel engine compatible for areas without power supply
- Customizable compression chamber and bale dimensions
- Extrusion force range: 63 to 400 tons (10 available grades)
- Productivity range: 4 to 40 tons per shift
Technical Specifications
| Attribute | Details |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Commercial Terms
| Term | Details |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10set/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Technical Parameters
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81F-315 | 315 | 3500*3000*1300 | 700*700 | 600-1000 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
| Y81F-400 | 400 | 3500*3000*1300 | 700*700 | 800-1300 | 135 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
| Y81F-500 | 500 | 4000*3000*1300 | 700*700 | 900-1500 | 135 |
| Y81K-500 | 500 | 4000*3500*1300 | 700*700 | 900-1600 | 135 |
| Y81F-600 | 600 | 4000*3000*1400 | 700*700 | 1000-1700 | 180 |
| Y81K-600 | 600 | 4000*3000*1300 | 700*700 | 1100-1700 | 180 |
| Y81F-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81K-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81F-1000 | 1000 | 5000*3500*1500 | 700*700 | 1300-1900 | 225 |
| Y81K-1200 | 1200 | 5000*3500*1500 | 700*700 | 1400-2000 | 270 |
Product Images
Frequently Asked Questions
Q1: How can I get the after-service?
We provide one year guarantee and lifelong maintenance. We will send you the spare parts free of charge if the problems are caused by us. For man-made problems, we still provide spare parts at cost. Any problem can be addressed by direct contact with our team.
Q2: Can I visit your factory before placing an order?
Yes, we welcome visits to our factory located at: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China. Our facility is conveniently located near Shanghai Pudong Airport, and we offer airport pickup and hotel booking services for your convenience.
Q3: Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years, with 50-60% of our production dedicated to export markets.
Q4: How can I trust your company?
With 20 years of professional design experience, we provide:
- Third-party assessed national patents and CE, ISO certifications
- Open invitation for factory inspection anytime
- Proven expertise in hydraulic balers and shears
- Strategic location near Shanghai Pudong airport
Q5: Is your price competitive?
We guarantee superior quality machines and provide the best factory price based on our product excellence and comprehensive service package.
