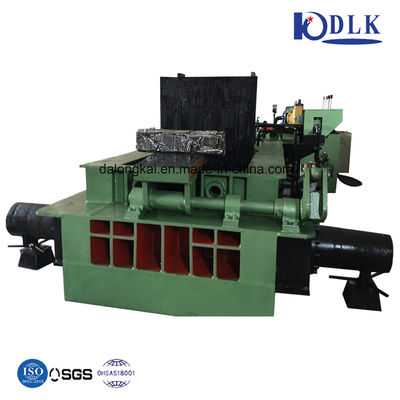

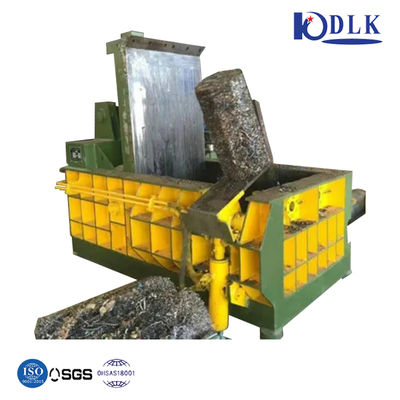

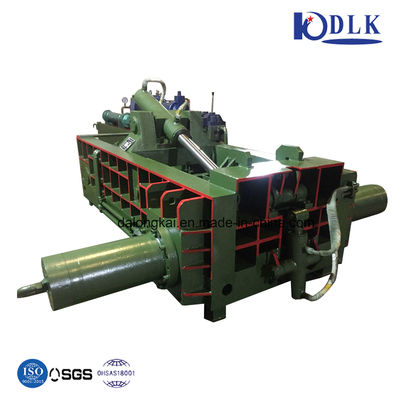

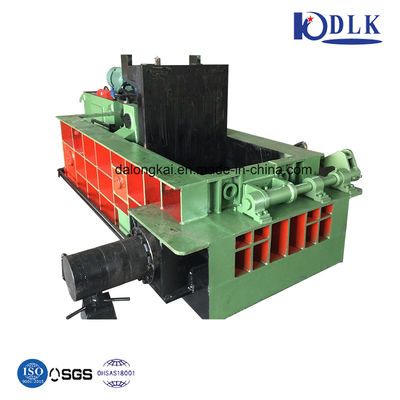

Y81F-160 Hydraulic Compactor Machine with 22 Kw Motor and 400x400mm Bale Size for Scrap Copper Recycling
Contacte-me para amostras grátis e vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.
xDetalhes do produto
| Modelo No. | Y81F-160 | Cyl.Force principal | 160 toneladas |
|---|---|---|---|
| Tamanho da caixa de pressione | 1600*1000*800 (mm) | Tamanho do fardo | 400*400 (mm) |
| Peso do fardo | 100 ~ 150 (kg) | Energia motora | 22 ((kw) |
| Força nominal | 125TONS ~ 1200TONS | Tipo acionado | Hidráulico |
| Tensão | 21,5Mpa, Personalizado | Grau automático | Semi-automático |
| Capacidade de produção | 5 conjuntos/mês | Força de extrusão | 63 toneladas a 400 toneladas |
| Produtividade | 4tons/turno para 40tons/turno | Tipos de descarga | Virando, empurrando, encaminhando, levantamento manual |
| Opções de energia | Motor a diesel disponível | ||
| Destacar | Y81F-160 Hydraulic Compactor Machine,22 Kw Motor Scrap Baler Machine,400x400mm Bale Size Hydraulic Metal Baler |
||
Descrição de produto
Y81f-160 Hydraulic Compactor Machine for Scrap Copper
Product Overview
The Y81 series metal hydraulic baler efficiently compacts various metal scrap materials including steel, copper, aluminum, stainless steel, and automotive scrap into dense, transport-friendly bales. This machine reduces transportation costs while increasing loading efficiency.
Key Features
- Processes multiple metal types into square, cylindrical, or octagonal bales
- Hydraulic drive system with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No foundation bolts required for installation
- Diesel engine compatible for areas with unreliable power supply
- Customizable compression chamber and bale dimensions
Technical Specifications
| Attribute | Details |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa (Customizable) |
| Color | Customizable |
| Automatic Grade | Semi-Automatic |
Commercial Terms
| Term | Details |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Model Specifications
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
Product Images
Factory & Certification
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. Spare parts are provided free if problems are caused by manufacturing defects. For user-caused issues, spare parts are available at cost. Direct phone support is always available.
Q2: Can I visit your factory before ordering?
Yes, we welcome factory visits. Our facility is located at 29# Panlongshan Road, Jiangyin city, Jiangsu province (214429), China, near Shanghai Pudong Airport. We provide airport pickup and can assist with hotel arrangements.
Q3: Are you a factory or trading company?
We are a manufacturer with 20 years of experience, exporting 50-60% of our production.
Q4: How can I trust your company?
- Certified with national patents, CE, and ISO standards
- Factory inspections welcome - conveniently located near Shanghai Pudong airport
- Specialized in hydraulic balers and shears with proven expertise
Q5: Is your price competitive?
We offer the best factory prices for our high-quality machines, backed by superior service and support.
